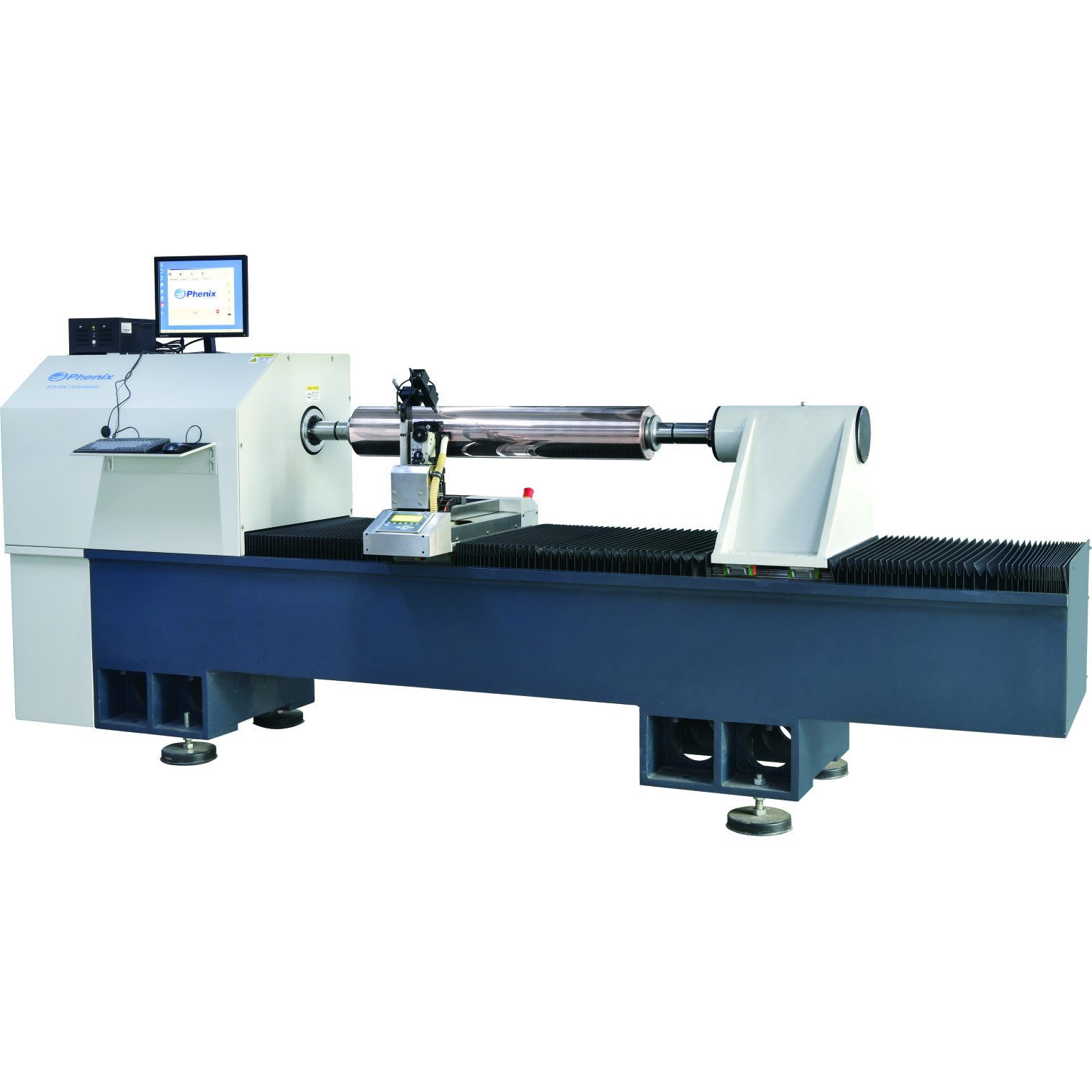

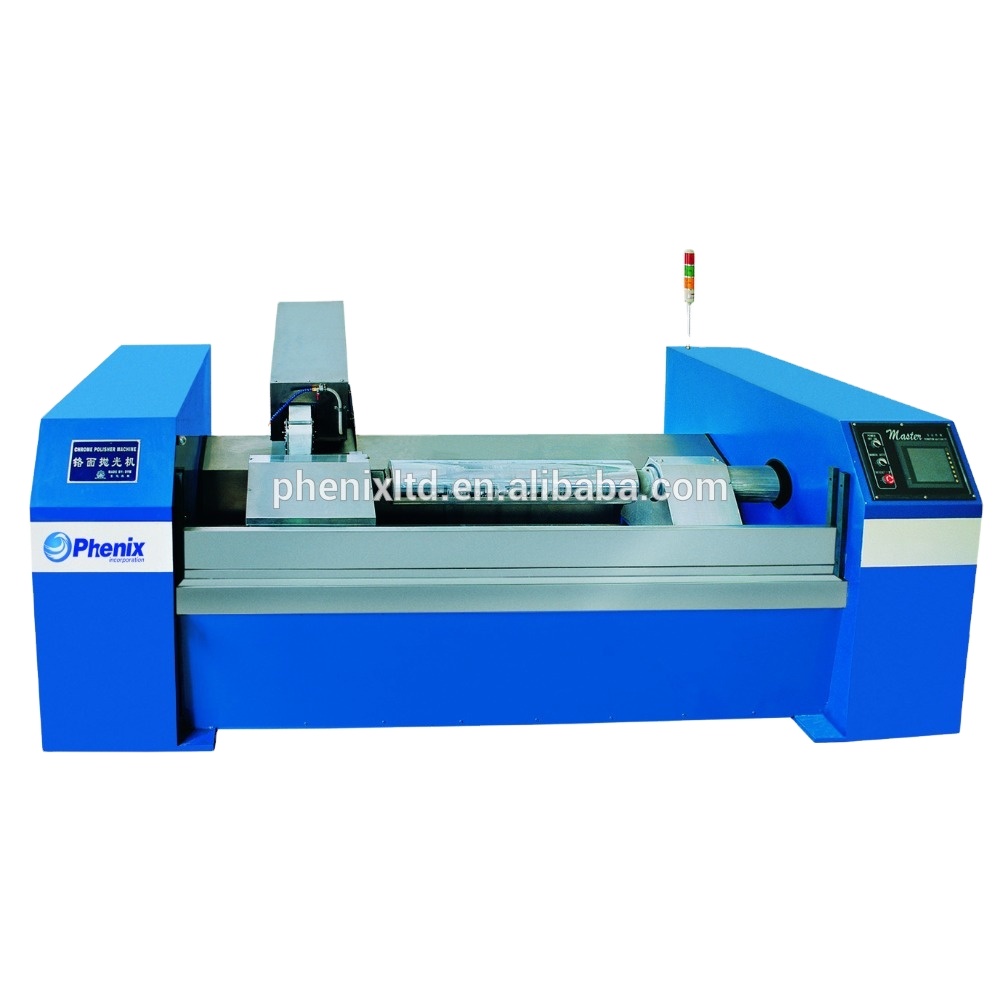

Tutorial GuideHigh Precision Gravure Plate Making Engraving Machine
High-Precision Engraving:
The equipment is capable of extremely delicate engraving work, capable of carving out precise cells to ensure the high quality of the printed products.
Multi-Technology Application:
In addition to traditional mechanical engraving, some high-end models may integrate laser or electron beam technology to achieve a more refined engraving effect.
Automated Control:
Integrated automated control systems enhance the convenience of operation and the stability of the engraving process.
Stability:
The equipment design focuses on stability, ensuring the reliability and repeatability of long-term work.
Technical Specifications:
Engraving Frequency: The engraving frequency can reach from 4000Hz to 8000Hz, affecting the engraving efficiency and the fineness of the cells.
Line Range: The equipment supports a wide range of lines per centimeter (LPC), such as 40 to 140, to meet the printing needs of different refinements.
Process Flow:
Process Formulation: Determine the basic data such as the screen ruling, screen angle, and dot value according to the printing suitability, and adjust the electro-engraving tone curve.
Typesetting: Typeset the image according to the color sequence and design requirements, paying attention to the direction and order of the text and graphics.
Pilot Engraving: Conduct a pilot engraving before the formal engraving to test the engraved cell value and ensure it meets the expected effect.
Formal Engraving: Adjust the process parameters according to the pilot engraving results and proceed with the formal engraving.
Post-Engraving Inspection: After engraving is completed, inspect the quality of the cells to ensure there are no omissions or knife marks.
Demount Process: Safely remove the engraved cylinder using specialized tools and methods.
Application Fields:
High-precision gravure plate-making engraving machines are widely used in flexo printing, paper product printing, fine printing of magazines and product catalogs, and the printing of valuable securities such as banknotes and stamps.
Market Position:
With the development of intaglio printing technology, gravure plate-making engraving machines hold an important position in both domestic and international markets, especially in the field of flexible packaging printing.
